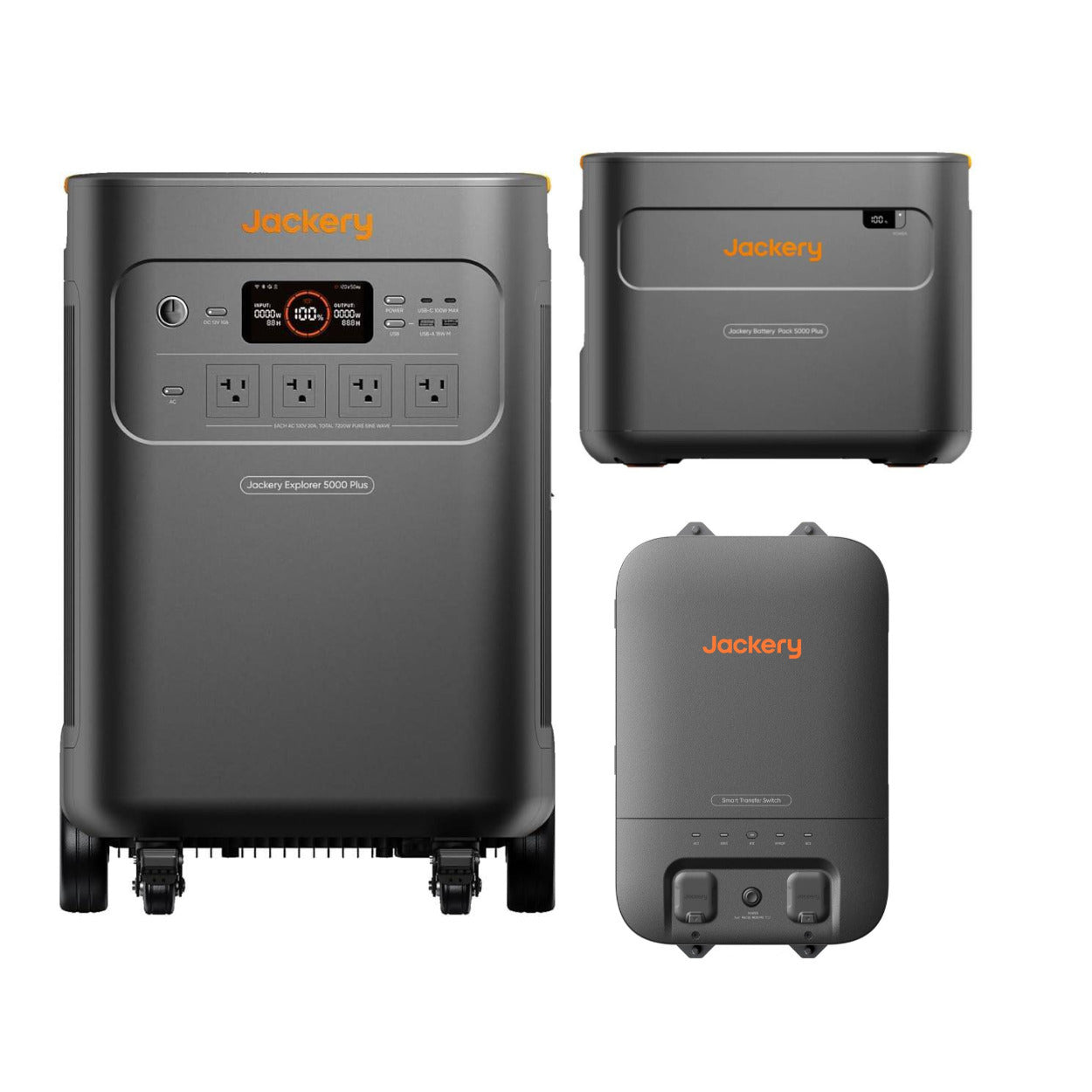

Jackery Explorer 5000 Plus Power Station with Battery and Smart Transfer Switch
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
All-in-One Home Backup & Off-Grid Power Solution
The Jackery Explorer 5000 Plus Power Station is an advanced, scalable home backup and off-grid energy solution designed for maximum reliability and flexibility. Includes the Battery Pack 5000 Plus, and the Smart Transfer Switch, this system delivers seamless, expandable power capacity for essential appliances and sensitive electronics. Whether you're preparing for extended outages, powering high-demand tools, or transitioning to solar energy, the 5000 Plus Series provides clean, quiet, and uninterrupted power when and where you need it most.
Expandable Power Capacity
Start with 5040Wh and scale up to 60kWh by adding up to 12 Battery Packs—ideal for extended outages, home backup, or off-grid living.
Massive Power Output
Delivers 7200W rated power and 14400W surge capacity, enough to run high-demand appliances like dryers, freezers, HVAC units, and power tools.
Dual Voltage Compatibility (120V/240V)
Supports both standard and high-voltage devices, making it versatile for household, workshop, and outdoor applications.
Seamless UPS Functionality
0ms Online Mode ensures zero downtime for sensitive electronics like PCs, routers, NAS systems, and medical equipment.
Backup Mode with ≤20ms Switchover
Provides smooth transitions for essential appliances like refrigerators, lights, and fans during outages with minimal delay.
Comprehensive Output Options
Equipped with 12 output ports including 120V/240V AC, USB-A, USB-C (100W), and a 12V car port to power multiple devices simultaneously.
Fast Solar Charging
Accepts up to 4000W of solar input to fully charge the system in as little as 1.7 hours—ideal for sustainable, off-grid energy use.
Advanced LiFePO4 Battery Cells
Reliable, safe, and thermally stable battery chemistry with 4000+ charge cycles to maintain over 70% capacity.

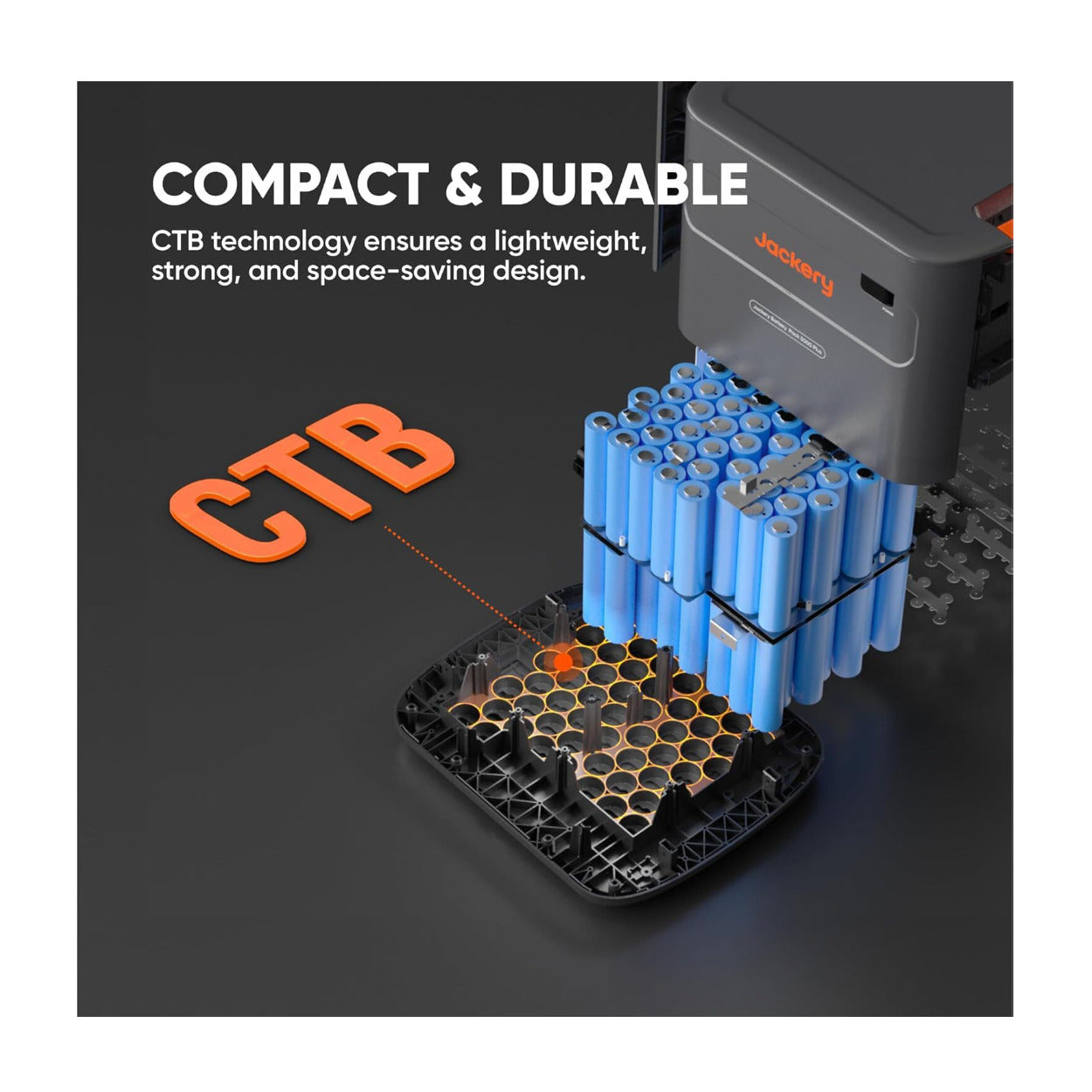

Cell-to-Pack (CTB) Structural Technology
Provides a lighter, more compact, and stronger design for the Battery Pack without compromising durability or energy density.
Real-Time System Monitoring
Built-in smart displays on both the Explorer and Battery Pack provide live data on power usage, battery level, and system health.
Smart Transfer Switch Integration
Automatically routes backup power to connected home circuits with ≤20ms switchover for uninterrupted power delivery.
Online Mode via Transfer Switch
Enables true 0ms switchover for essential rooms or circuits—keeping your fridge, Wi-Fi, and work devices running without flicker.

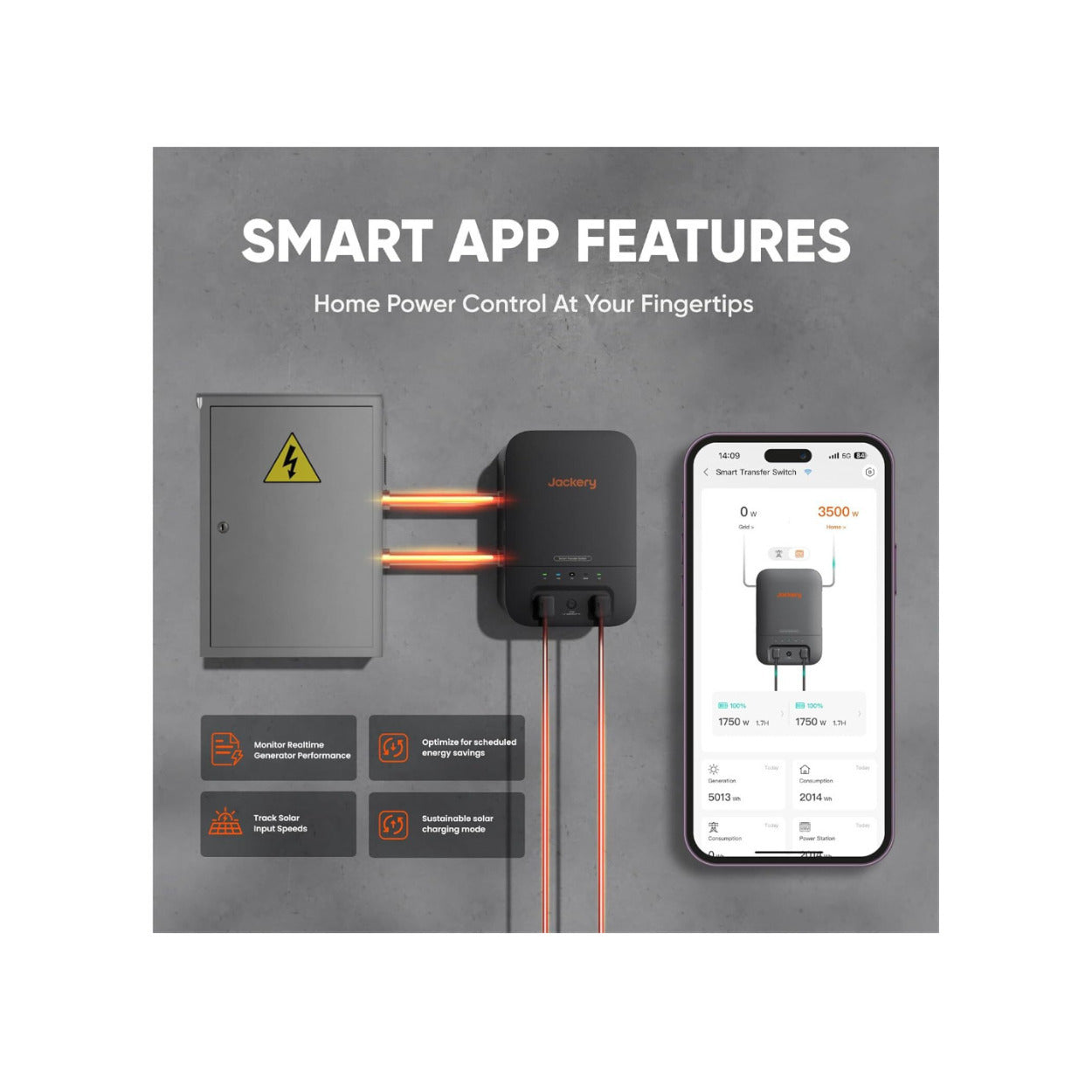

Smart App Control
Manage energy settings, monitor usage, and view real-time performance via the Jackery mobile app.
Safe and Certified Operation
UL1973 certified with built-in Battery Management System (BMS) to ensure safety, efficiency, and protection from overcharge/discharge.
Eco-Friendly & Quiet Operation
Compatible with solar panels for sustainable energy and whisper-quiet backup during outages.

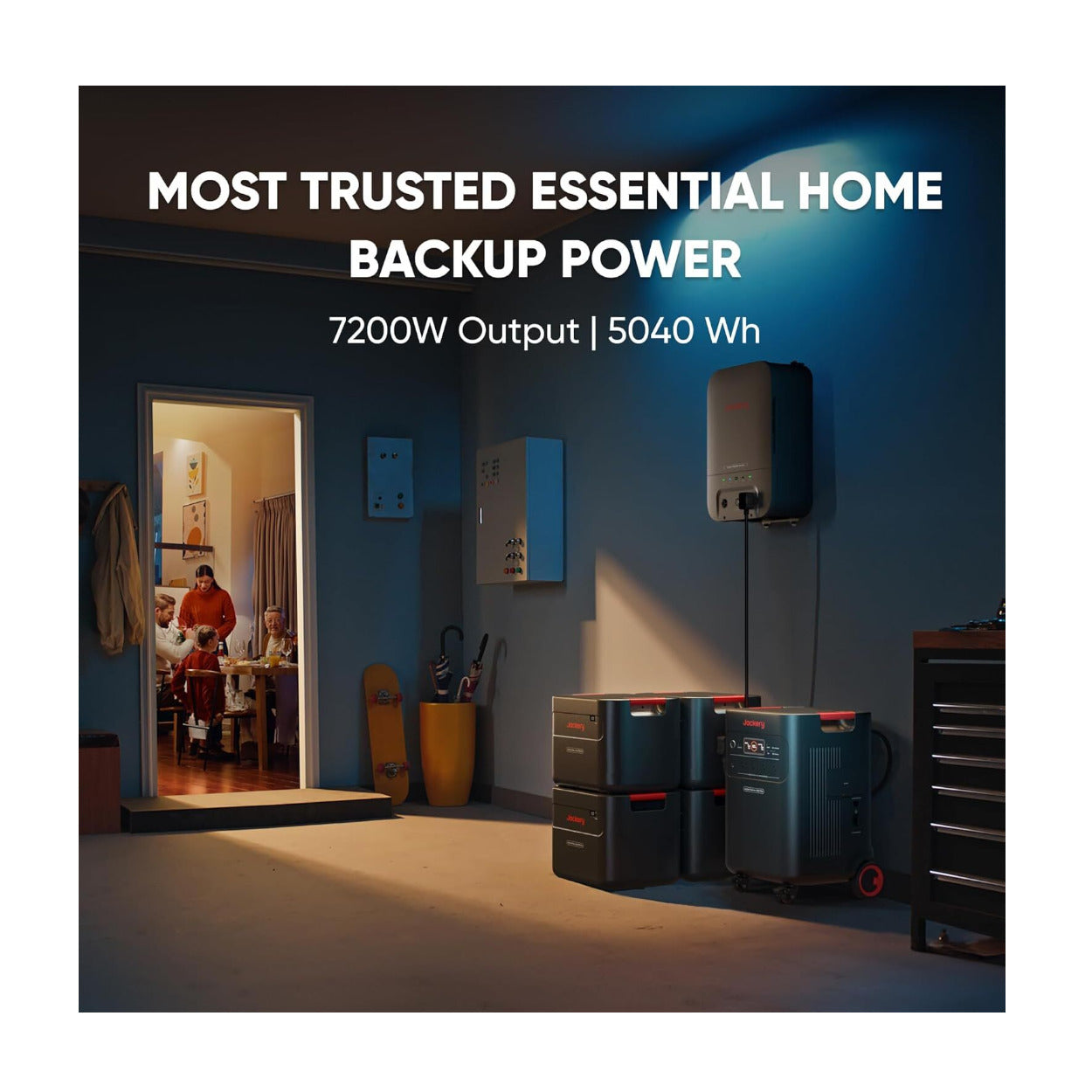

Essential Room Coverage
Delivers backup power precisely where you need it—whether it’s your kitchen, office, or communication hub.
Portable Battery Pack Design
Dual-handle Battery Pack supports over 4x its own weight, making it easy to carry despite its capacity.
- 16V–60V⎓10.5A Max, Double to 21A / 1200W Max
- 11V–16V (Working Voltage)⎓8A Max, Double to 8A Max

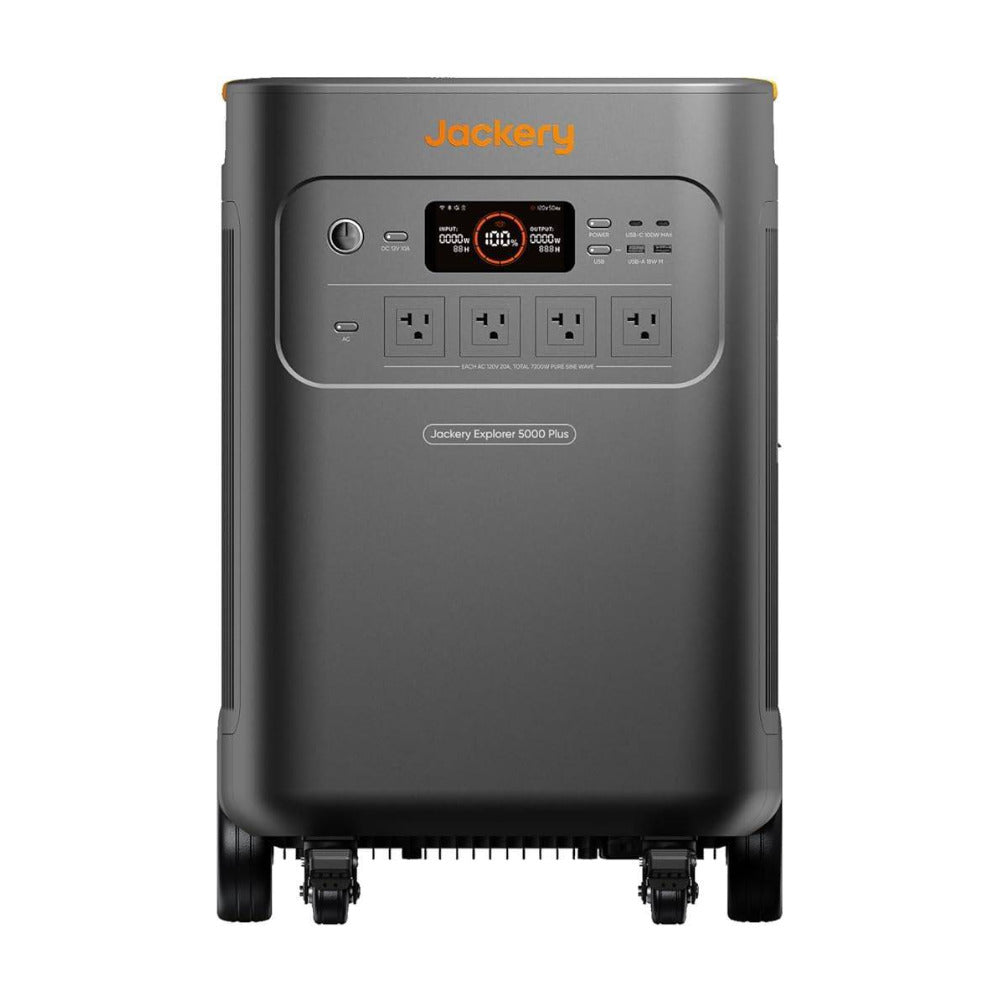

Jackery Explorer 5000 Plus
General
| Weight | About 134.5 lbs (61 kg) |
| Dimensions | 16.5 × 15.5 × 25 in / 41.8 × 39.5 × 63.5 cm |
| Charge Temperature | 32113 °F (045°C) |
| Discharge Temperature | 5113 °F (-1545°C) |
Battery
| Capacity | 45Ah / 112V DC (5040 Wh) |
| Cell Chemistry | LiFePO4 |
| Cycle Life | 4000 cycles to 70%+ capacity |
Output Ports
| AC Output (4x) | 120V, 20A, 2400W |
| AC Output (1x) | NEMA L14-30R/14-50, 120V/240V~60Hz, 30A, 7200W Max |
| AC Total Output | 7200W Max, 14400W Surge |
| USB-C Output (2x) | 100W Max, 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A |
| USB-A Output (2x) | 18W Max, 5-6V⎓3A, 6-9V⎓2A, 9-12V⎓1.5A |
| Cigarette Lighter Port | 12V⎓10A |
| AC Expansion Port | 240V~60Hz, 30A, 7200W |
| DC Expansion Port | 80.5V–126V⎓41A Max |
Input Ports
| Charge Mode AC Input | 120V~60Hz, 15A Max |
| Bypass Mode AC Input/Output | 120V60Hz, 12A Max; 240V60Hz, 16.7A Max |
| AC Expansion Port (Input) | 240V~60Hz, 16.7A Max |
| DC Input – DC Expansion Port (Input) | 80.5V–126V⎓98A Max |
| High-PV Input | 135V–450V⎓15A Max |
| Low-PV Input (2x DC 8mm Ports) |
Charging Time
| AC Adapter | 3.5 Hours |
| Car Adapter | Not Supported |
Other Specifications
| UPS Backup Mode | ＜20ms |
| UPS Online Mode | 0ms |
| Inverter Topology | Non-isolated |
| Power Factor | ≥0.98 |
| Entire Unit Classification | Type 1 |

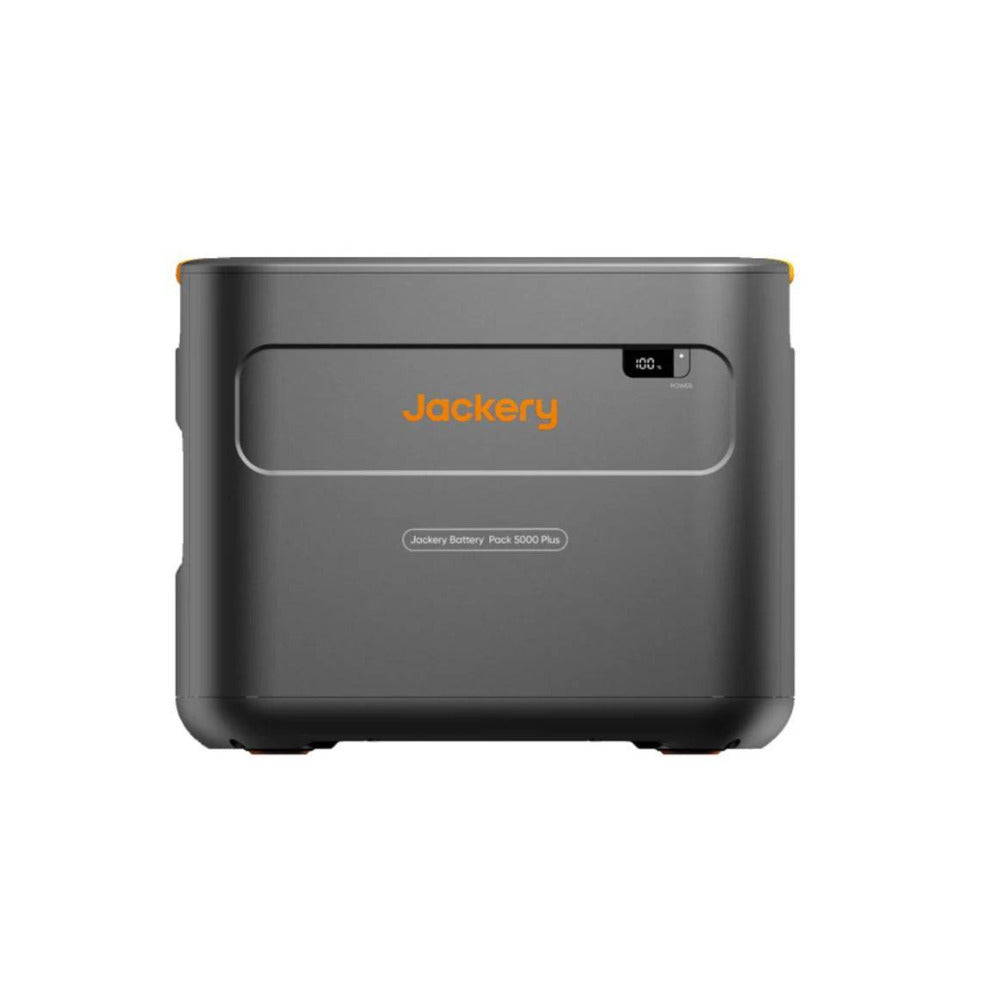

Jackery Battery Pack 5000 Plus
| Capacity | 45Ah / 112V DC (5040Wh) |
| Cell Chemistry | LiFePO4 |
| Weight | About 81.57 lbs (37 kg) |
| Dimensions | 16.5 × 13.5 × 13.2 in / 41.8 × 34.4 × 33.6 cm |
| Cycle Life | 4000 cycles to 70%+ capacity |
| Maximum Short Circuit Current and Duration | 2600A / 5ms |
| Ingress Protection | IP20 |
| DC Expansion Port (Input) | 80.5V–126V⎓41A Max |
| DC Expansion Port (Output) | 80.5V–126V⎓98A Max |
| Charge Temperature | 0°C ~ 45°C (32°F ~ 113°F) |
| Discharge Temperature | -15°C ~ 45°C (5°F ~ 113°F) |

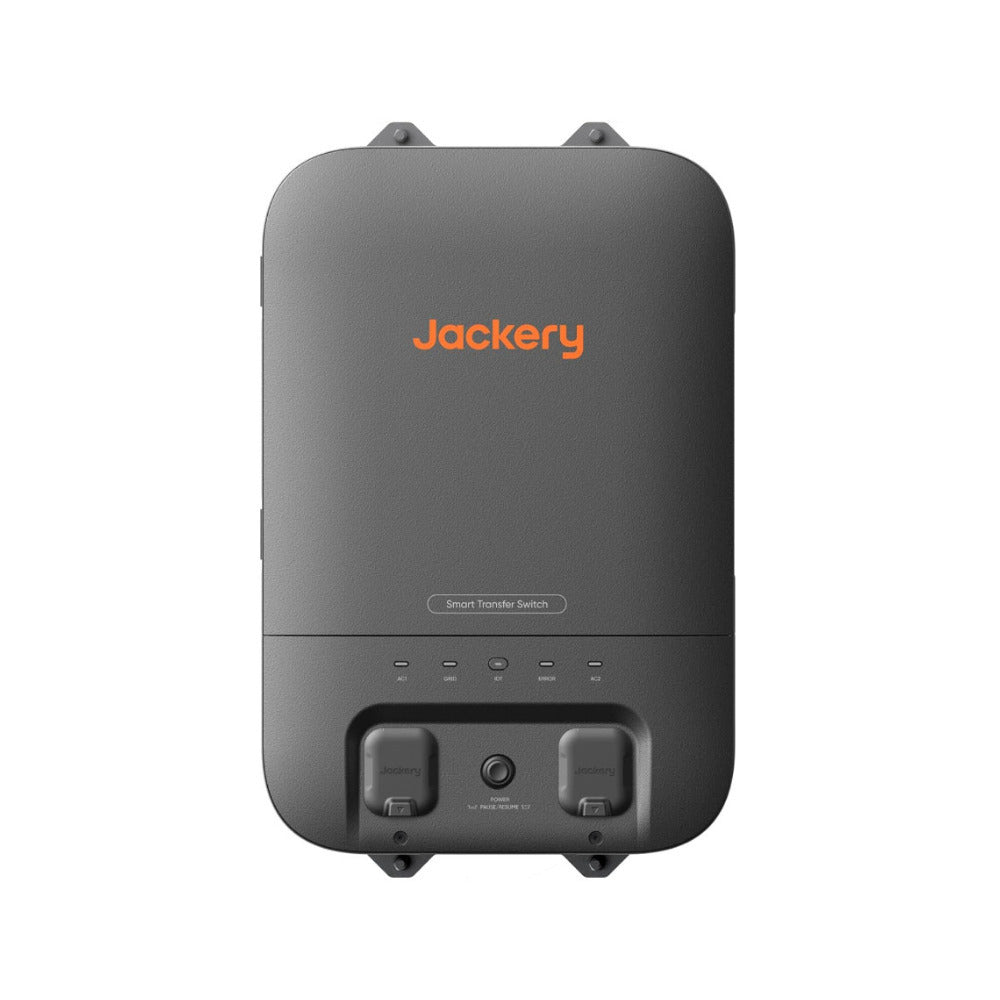

Jackery Smart Transfer Switch
General
| Dimensions | 22 × 14.7 × 7.87 in / 56 × 37.4 × 20 cm |
| Weight | About 25.57 lbs (11.6 kg) |
| Operating Temperature | -4°F113°F (-20°C45°C) |
Ports & Electrical Ratings
| AC Voltage (Nominal) | 120V/240V~ 60Hz |
| Feed-In Type | Split Phase |
| Maximum Input Current | 100A Grid / 60A Power Station |
| Maximum Output Current | 60A Home Load / 33.4A Power Station |
| Maximum Input Short-Circuit Current | 10KA |
| Overvoltage Category | IV |
| UPS | ≤20ms |
Wiring & Enclosure
| Enclosure Type (Distribution Panel) | NEMA Type 1 |
| Number of Load Branches | 12 |
| Main Circuit | 2 AWG |
| Branch Circuit | 14 AWG / 12 AWG / 10 AWG |
Communication
| Wi-Fi and Bluetooth |
