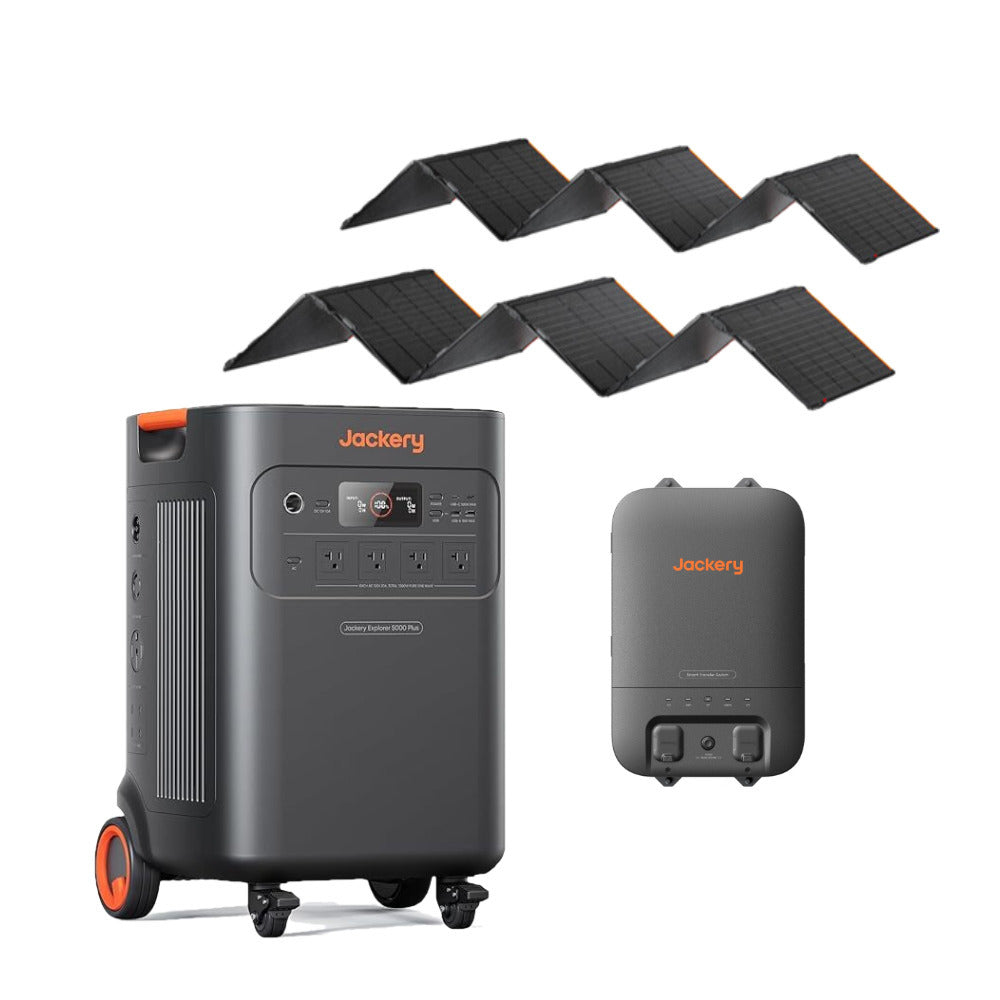

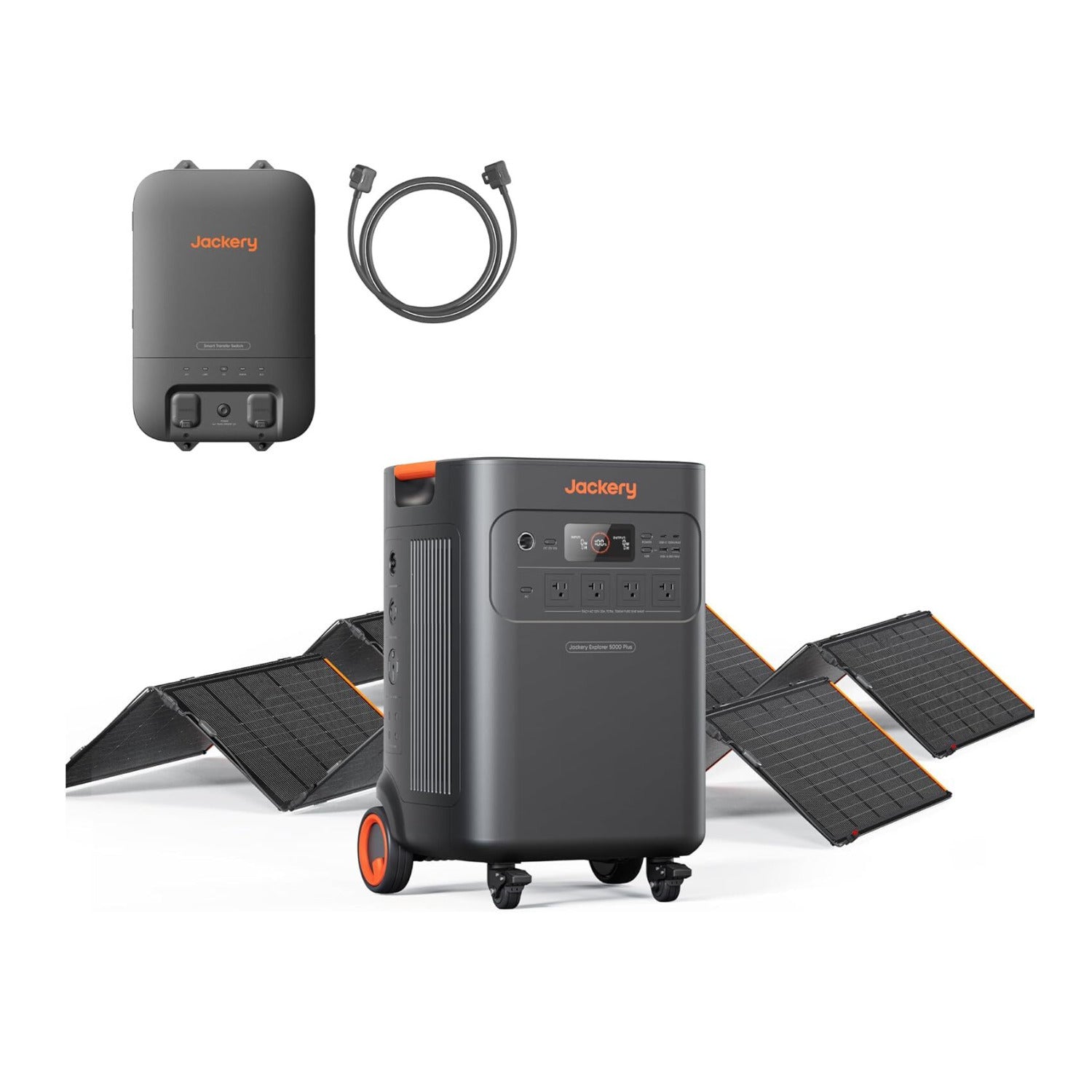

Jackery Explorer 5000 Plus with Smart Transfer Switch & Two SolarSaga 500X
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
Whole-Home Backup Power with Solar Charging & Seamless Transition
The Jackery Explorer 5000 Plus delivers a scalable, eco-friendly home power solution with up to 60kWh capacity and powerful 7200W–14400W output. Paired with dual SolarSaga 500 panels and the Smart Transfer Switch, it ensures uninterrupted power to your essential rooms during blackouts, natural disasters, or off-grid living. With 0ms UPS switchover, 120V/240V dual voltage output, and 12 output ports, you can keep your appliances, electronics, and HVAC systems running smoothly.
Expandable 5–60kWh Capacity
Power your home for up to 30 days by adding up to 12 Jackery Battery Packs.
Massive 7200W Rated / 14400W Surge Output
Handles demanding appliances like refrigerators, dryers, HVAC systems, and more.
120V/240V Dual Voltage Output
Powers a wider range of appliances and tools, ideal for both home and outdoor use.
0ms UPS Switchover
Seamless backup transition keeps essential devices like computers and routers online without interruption.

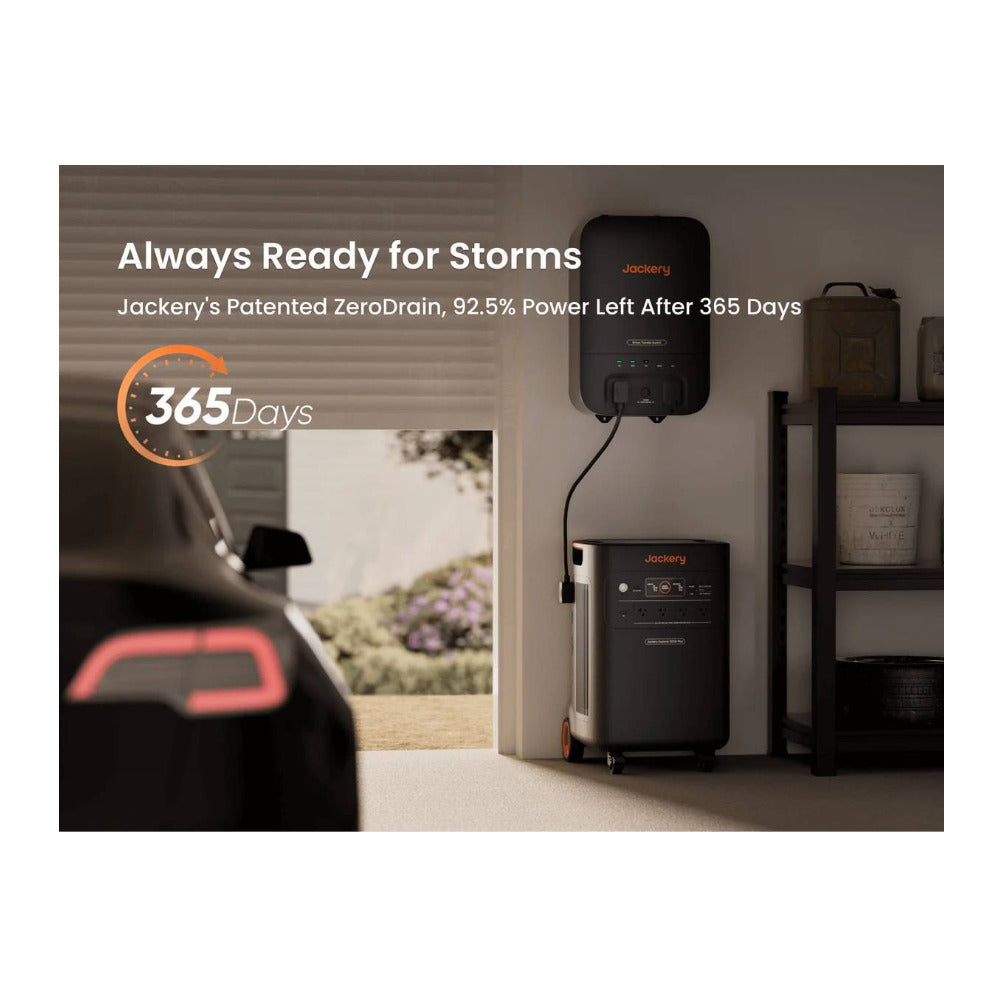

Smart Transfer Switch Integration
Automatically routes power to key home circuits, allowing whole-room backup during outages.
12 Output Ports
Supports multiple devices and appliances simultaneously.

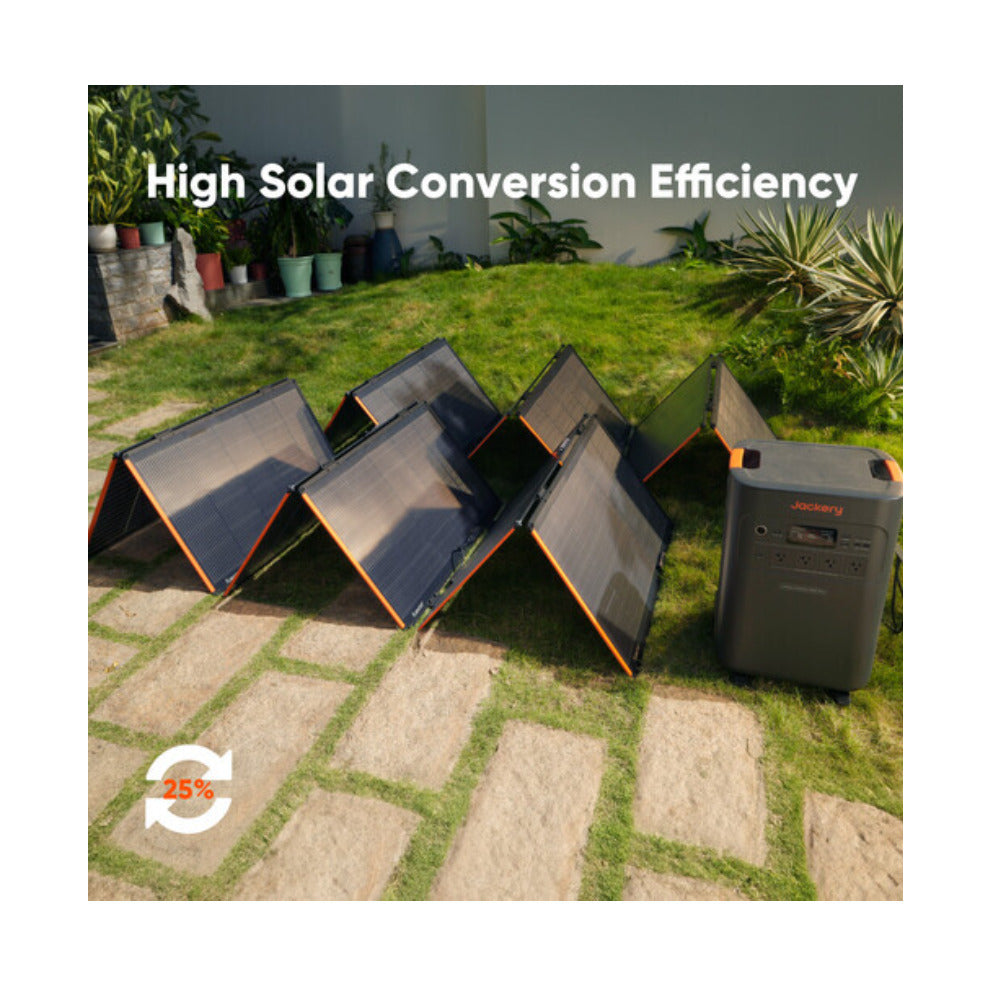

4000W Solar Input
Achieve a full charge in just 1.7 hours using solar—faster than most home backup systems.
5 Charging Methods
Recharge via AC, solar, EV station, dual AC+solar, or generator for flexibility in any situation.
Zero-Emission, Indoor-Safe Design
No fumes, fuel, or noise—perfect for indoor and apartment use.
Smart App Control
Monitor and manage power usage remotely with the Jackery app.
- 2 x DC 8mm Ports: 16V–60V⎓10.5A Max (combined 21A / 1200W Max)
- 11V–16V Working Voltage⎓8A Max (combined 8A Max)

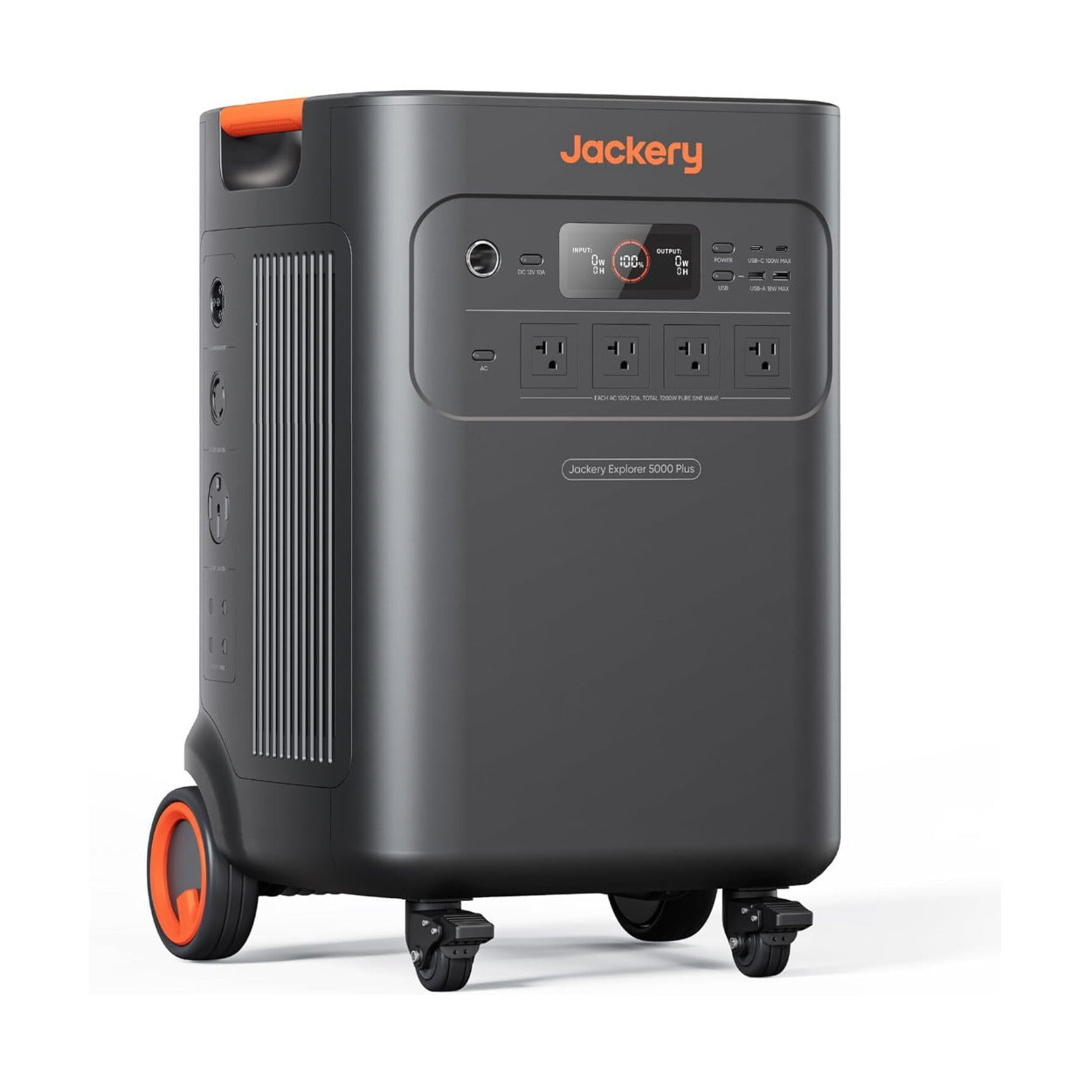

Jackery Explorer 5000 Plus
General
| Weight | About 134.5 lbs (61 kg) |
| Dimensions | 16.5 × 15.5 × 25 in / 41.8 × 39.5 × 63.5 cm |
| Charge Temperature | 32113°F (045°C) |
| Discharge Temperature | 5113°F (-1545°C) |
Battery
| Capacity | 45Ah / 112V DC (5040 Wh) |
| Cell Chemistry | LiFePO4 |
| Cycle Life | 4000 cycles to 70%+ capacity |
Output Ports
| AC Output | (4x) 120V, 20A, 2400W |
| NEMA Output | (1x) L14-30R/14-50, 120V/240V~60Hz, 30A, 7200W Max |
| AC Total Output | 7200W Max, 14400W Surge |
| USB-C Output | (2x) 100W Max, 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A |
| USB-A Output | (2x) 18W Max, 5-6V⎓3A, 6-9V⎓2A, 9-12V⎓1.5A |
| Cigarette Lighter Port | 12V⎓10A |
| AC Expansion Port | 240V~60Hz, 30A, 7200W |
| DC Expansion Port | 80.5V–126V⎓41A Max |
Input Ports
| Charge Mode AC Input | 120V~60Hz, 15A Max |
| Bypass Mode AC Input/Output | 120V60Hz, 12A Max / 240V60Hz, 16.7A Max |
| AC Expansion Port Input | 240V~60Hz, 16.7A Max |
| DC Expansion Port Input | 80.5V–126V⎓98A Max |
| High-PV Input | 135V–450V⎓15A Max |
| Low-PV Input |
Charging Time
| AC Adapter | 3.5 Hours |
| Car Adapter (12V) | Not Supported |
| Solar Charging | 6.5–8.5 Hours |
Other Specifications
| UPS Mode | Backup UPS <20ms, Online UPS 0ms |
| Inverter Topology | Non-isolated |
| Power Factor | ≥0.98 |
| Entire Unit | Type 1 |

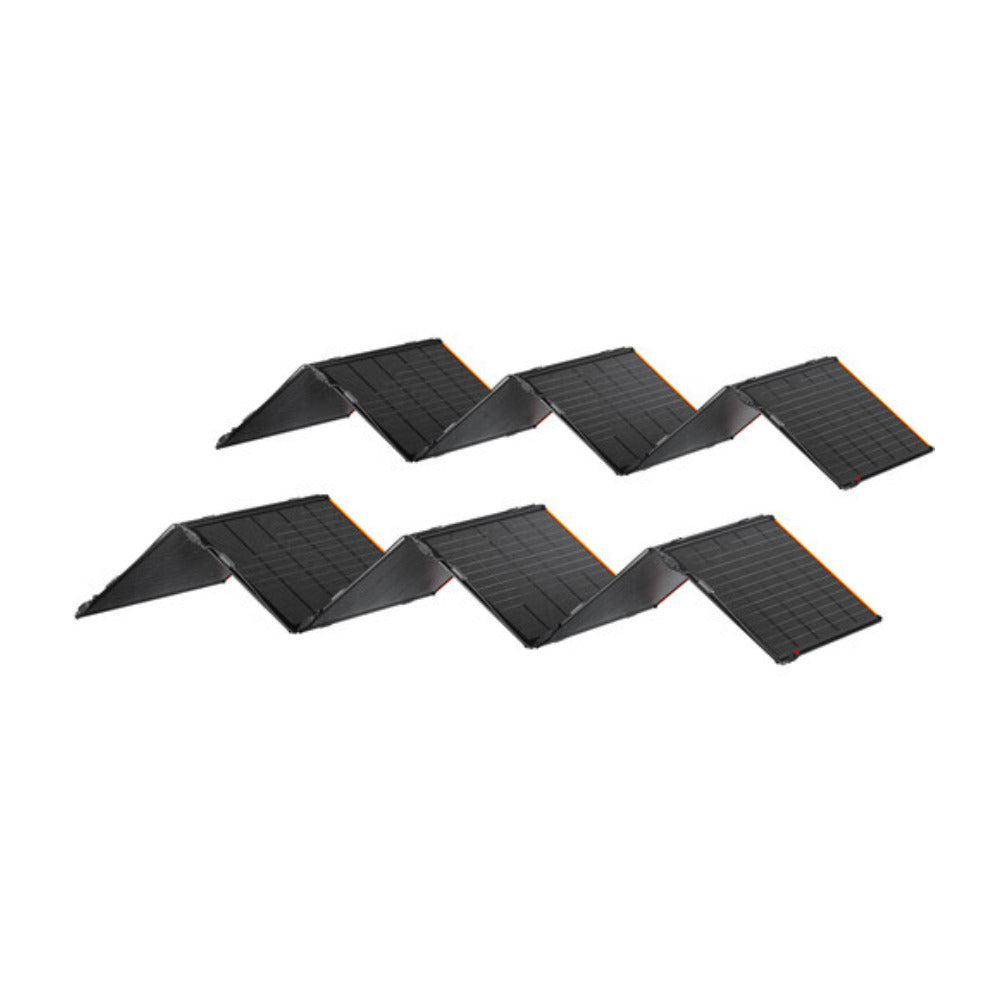

SolarSaga 500 X
General
Weight: 22.05 lbs ± 2.20 lbs (10.5 kg ± 0.5 kg)
Protection Class: Class II
Waterproof Rating: IP68
Operating Temperature: -40185°F (-4085°C)
Solar Performance (STC – 1000W/m², 25°C, AM 1.5)
Peak Power (Pmax): 500W ±5%
Open Circuit Voltage (VOC): 48.5V ±5%
Short Circuit Current (Isc): 13.02A ±5%
Voltage at Max Power (Vmp): 41.7V ±5%
Current at Max Power (Imp): 12.0A ±5%
Solar Performance (BNPI – Front 1000W/m², Rear 135W/m², 25°C)
Peak Power (Pmax): 545W ±5%
Open Circuit Voltage (VOC): 49.2V ±5%
Short Circuit Current (Isc): 13.86A ±5%
Voltage at Max Power (Vmp): 42.5V ±5%
Current at Max Power (Imp): 12.84A ±5%
Temperature Coefficients
Voltage: -0.26%/°C
Power: -0.32%/°C
Bifaciality Coefficient (Back/Front): Pmax >80%, Voc >97%, Isc >80%
Dimensions
Folded: 39.21 × 20.71 × 3.82 in (996 × 526 × 97 mm)
Unfolded: 98.15 × 39.21 × 11.57 in (2493 × 996 × 294 mm)

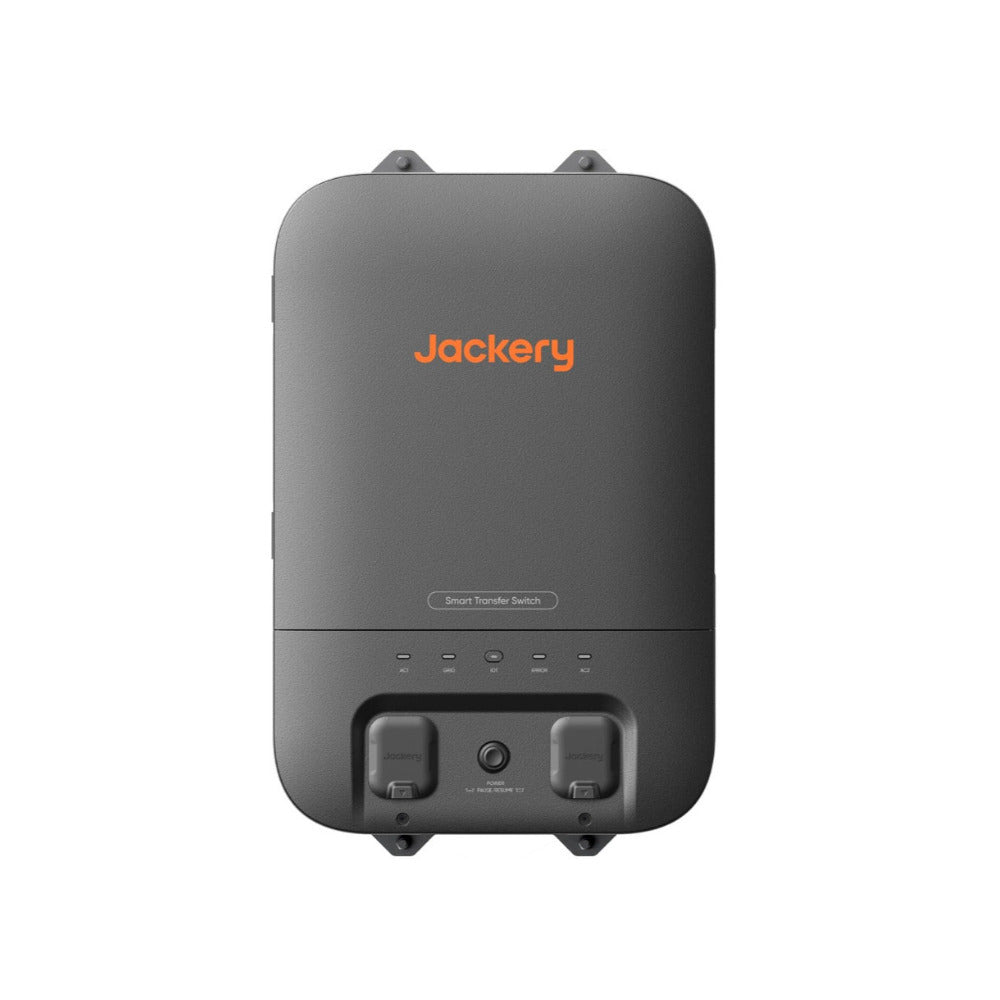

Smart Transfer Switch
General
| Dimensions | 22 × 14.7 × 7.87 in / 56 × 37.4 × 20 cm |
| Weight | About 25.57 lbs (11.6 kg) |
| Operating Temperature | -4°F113°F (-20°C45°C) |
Ports & Power
| AC Voltage (Nominal) | 120V/240V~ 60Hz |
| Feed-In Type | Split Phase |
| Max Input Current | 100A Grid / 60A Power Station |
| Max Output Current | 60A Home Load / 33.4A Power Station |
| Max Input Short-Circuit Current | 10KA |
| Overvoltage Category | IV |
| UPS Switch Time | ≤20ms |
Enclosure & Circuit
| Enclosure Type | NEMA Type 1 |
| Number of Load Branches | 12 |
| Main Circuit | 2 AWG |
| Branch Circuits | 14 AWG / 12 AWG / 10 AWG |
Communication
| Wireless | Wi-Fi and Bluetooth |
